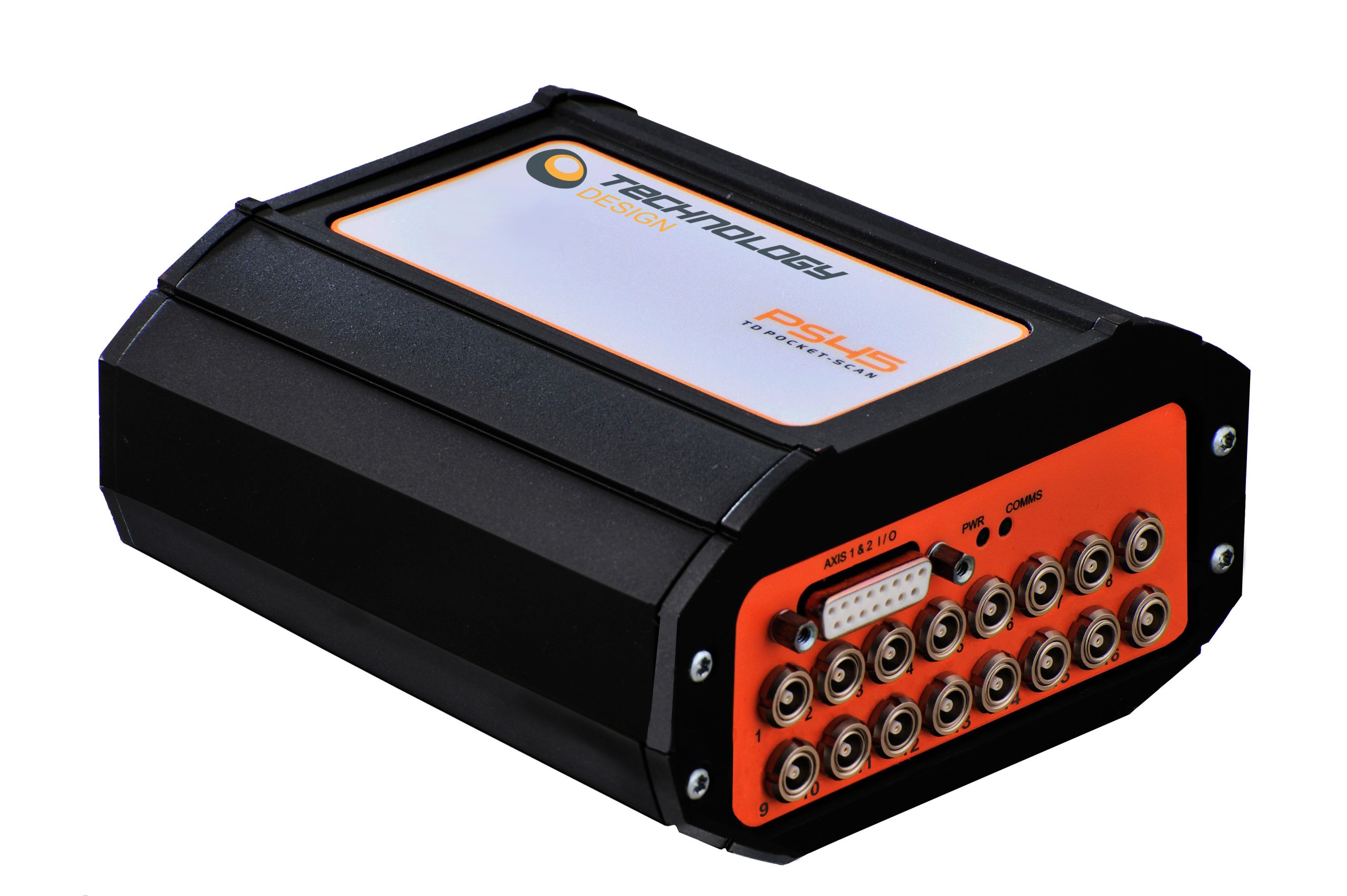

PS45 PocketScan
The PS45 PocketScan is a versatile, multi-channel ultrasonic unit designed for high-performance inspections in a compact enclosure. Supporting a full range of conventional ultrasonic techniques — including TOFD (Time of Flight Diffraction), Pulse Echo, Corrosion Mapping, and Weld Zone Discrimination — it delivers precision and reliability in every application.
Controlled directly from your laptop via a standard Ethernet connection, the PS45 ensures a seamless setup. No special drivers are required — simply connect to any Ethernet-enabled Windows® PC and you’re ready to work.
Available in configurations from 4 to 64 channels (in multiples of eight), the PS45 is widely recognised as one of the industry’s top TOFD instruments. It’s also a leading solution for corrosion mapping and multi-probe material degradation monitoring.
Designed for maximum versatility, the PS45 is ideal for rope access work, scanner- and gantry-mounted inspections, and operations in confined spaces. Its small footprint, combined with the powerful TDScan software, makes it the go-to solution for inspection system integrators and service providers who demand both portability and uncompromising performance.
| Features | Benefits |
| Portable yet highly capable | Wide range of applications in a lightweight, portable format |
| High Speed real-time data collection | Increases productivity by reducing down-time and costs |
| Easy to use menu’s | Minimal operator training required |
| Cost-effective solution | Smart investment for independent technicians or to outfit a complete inspection team |
| 2 Axis Encoder & Video Tracking | Enables area scans with ease and Video tracking facilitates non-mechanical X/Y scanning |
| Conventional channel configurations – 4/8/16/24/32/48/64 | Deploys multiple probes simultaneously to support complex inspection setups |
| Compact design – 123 x 124 x 58 mm (4 & 8 channel) | Ideal for Rope access work, Scanner and Gantry mounted Inspections, and Inspections in confined spaces |
| Ethernet Link – PS45 to Laptop. (PS45 will communicate with any Ethernet-enabled Windows® PC) | Simplifies the link between laptop and PocketScan, requiring minimal initial setup with no special drivers. |
| Fast Data Transfer | Minimise downtime between inspection and remote analysis |
| Includes TD Scan software | Reduces overall cost with software included as standard with all TD products |
| Extensive Off-line Analysis Tools | Analysis mode integrated with acquisition software for fast on site results |
| Powerful Built-In Reporting (Integrated with TD Scan Software) | Eliminates the need for additional analysis software, streamlining workflows with integrated reporting capabilities |
| Integration with Eclipse Scientific BeamTool® | Streamlines inspection workflows by importing setups and overlays directly from BeamTool® files. |
| Rugged enclosure | Trusted unit in tough environments and site conditions |
| Compatible with most market-leading transducers and scanners | Utilise existing inspection inventory |
- Pressure Vessel Welds
- Pipeline Welds
- Structural Welds
- Hydrogen Damage Surveys
- Corrosion Surveys
- Forgings & Castings
- Aircraft Components
- Complex Geometries
- Composite inspection
- Subsea applications
- ToFD
- Pulse Echo
- Corrosion Mapping
- Weld Zone Discrimination
- Condition Monitoring
- Pulse Echo
- TOFD
- Strip-Scan
- Long Range (Creep Wave & Corrosion Mapping)
- TD Super-View
- ESBeamTool import (setup & overlay)
Datasheet
Request A Quote
Send us a request to quote by selecting the options required. A member of our team will get back to you as soon as possible with more information.
A compact multi-channel unit with conventional ultrasonic capabilities including ToFD, Pulse Echo, Corrosion Mapping and Weld Zone Discrimination techniques. The PS45 PocketScan is controlled from your laptop via direct Ethernet.
